Sign System Intro page

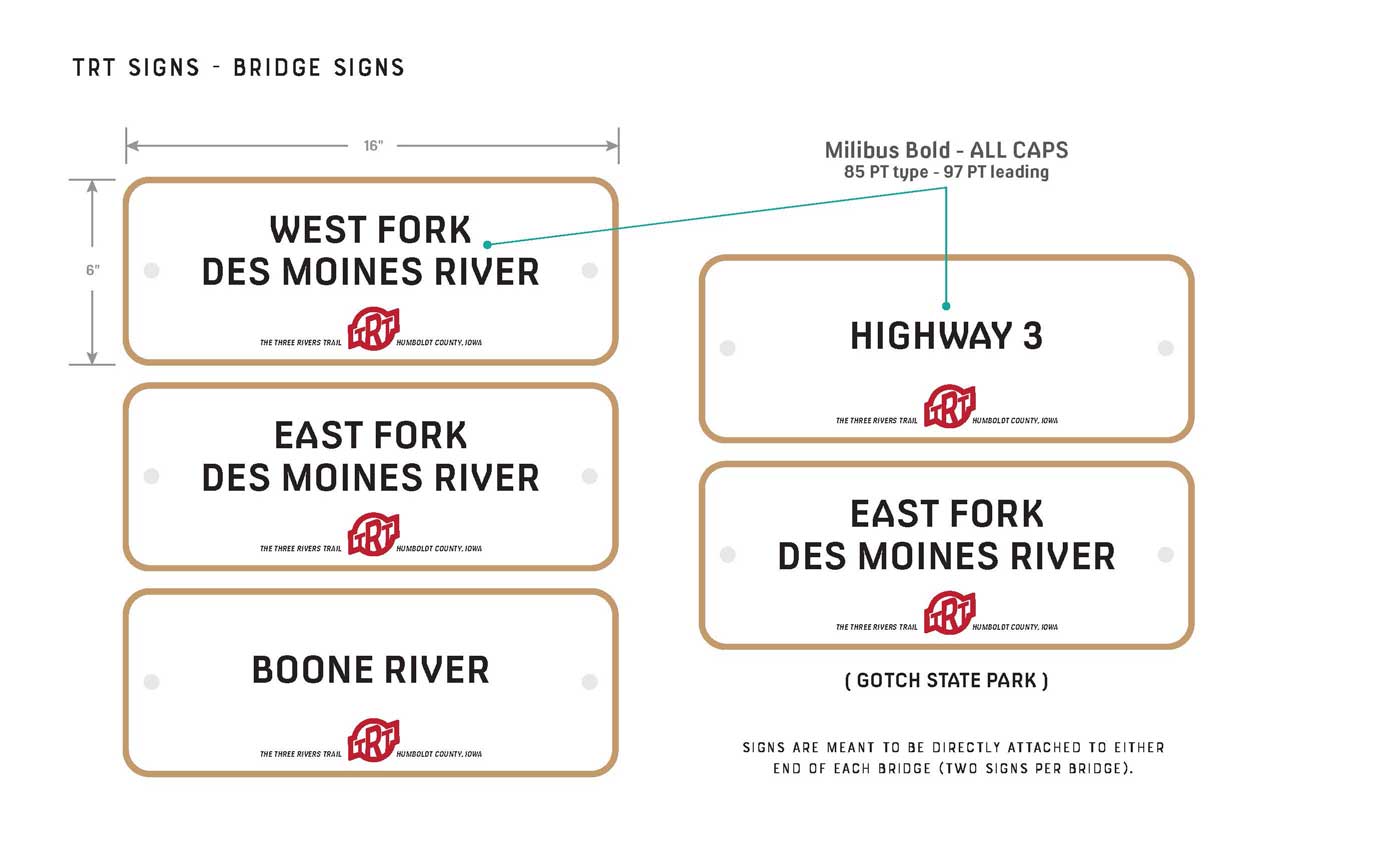

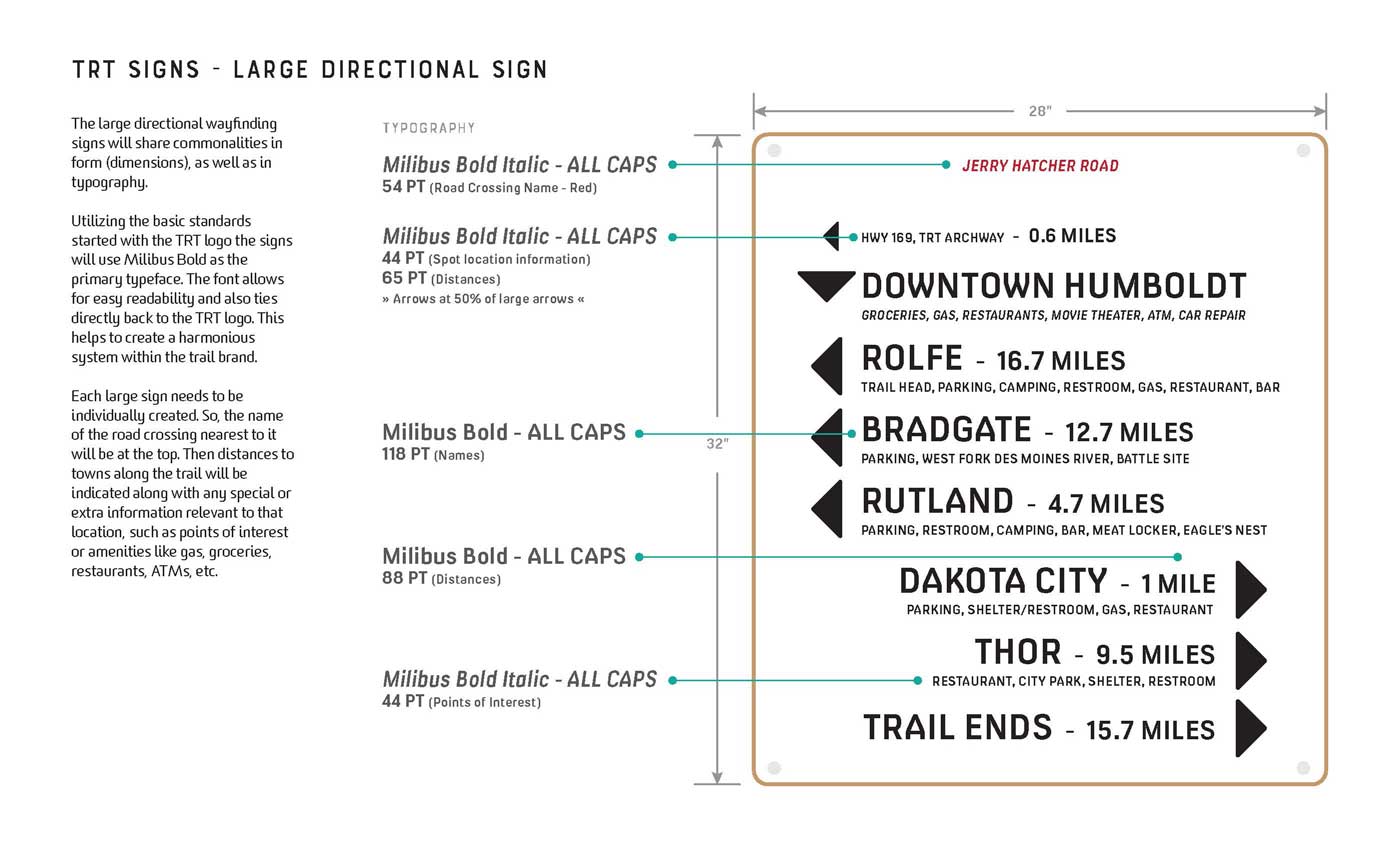

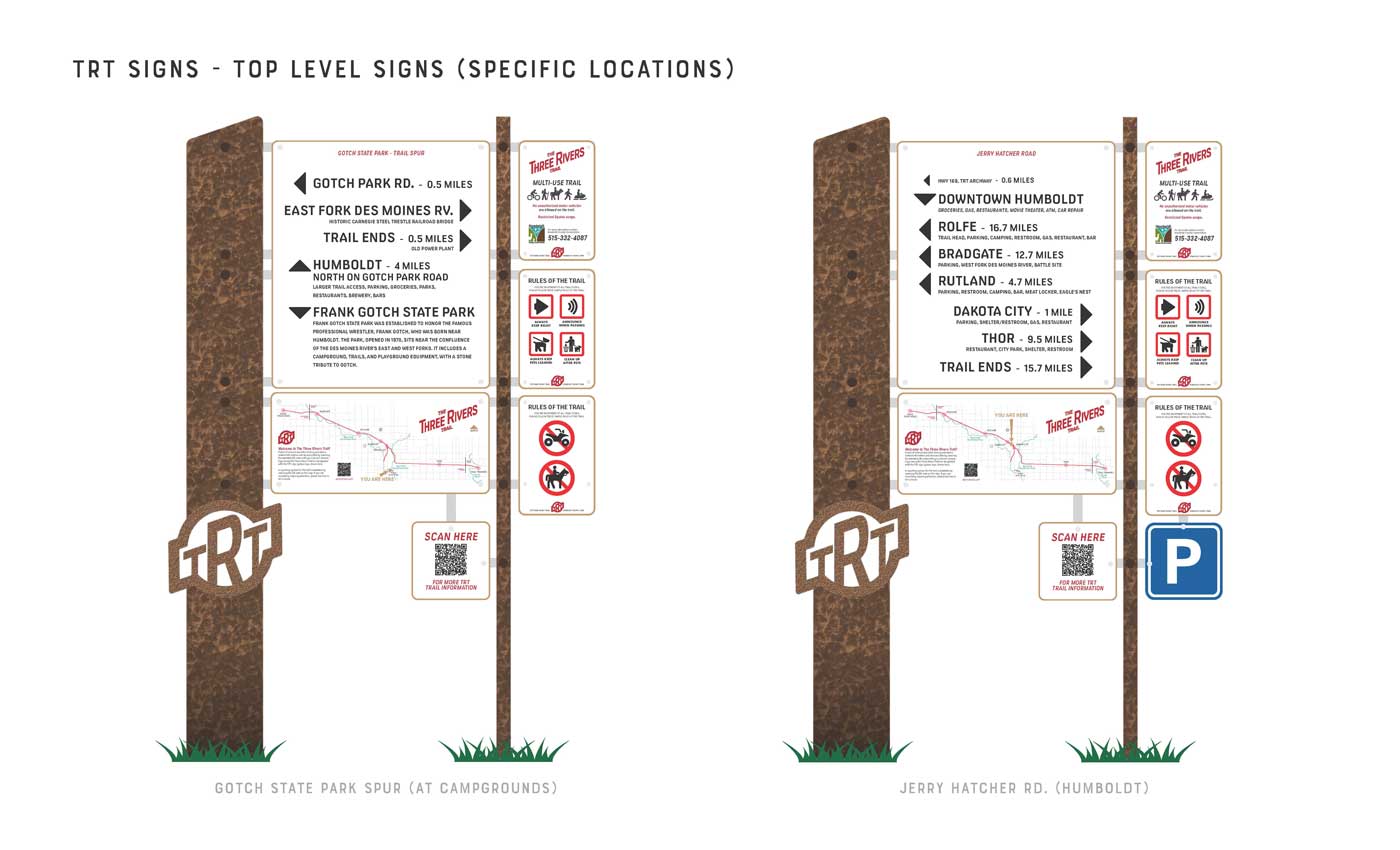

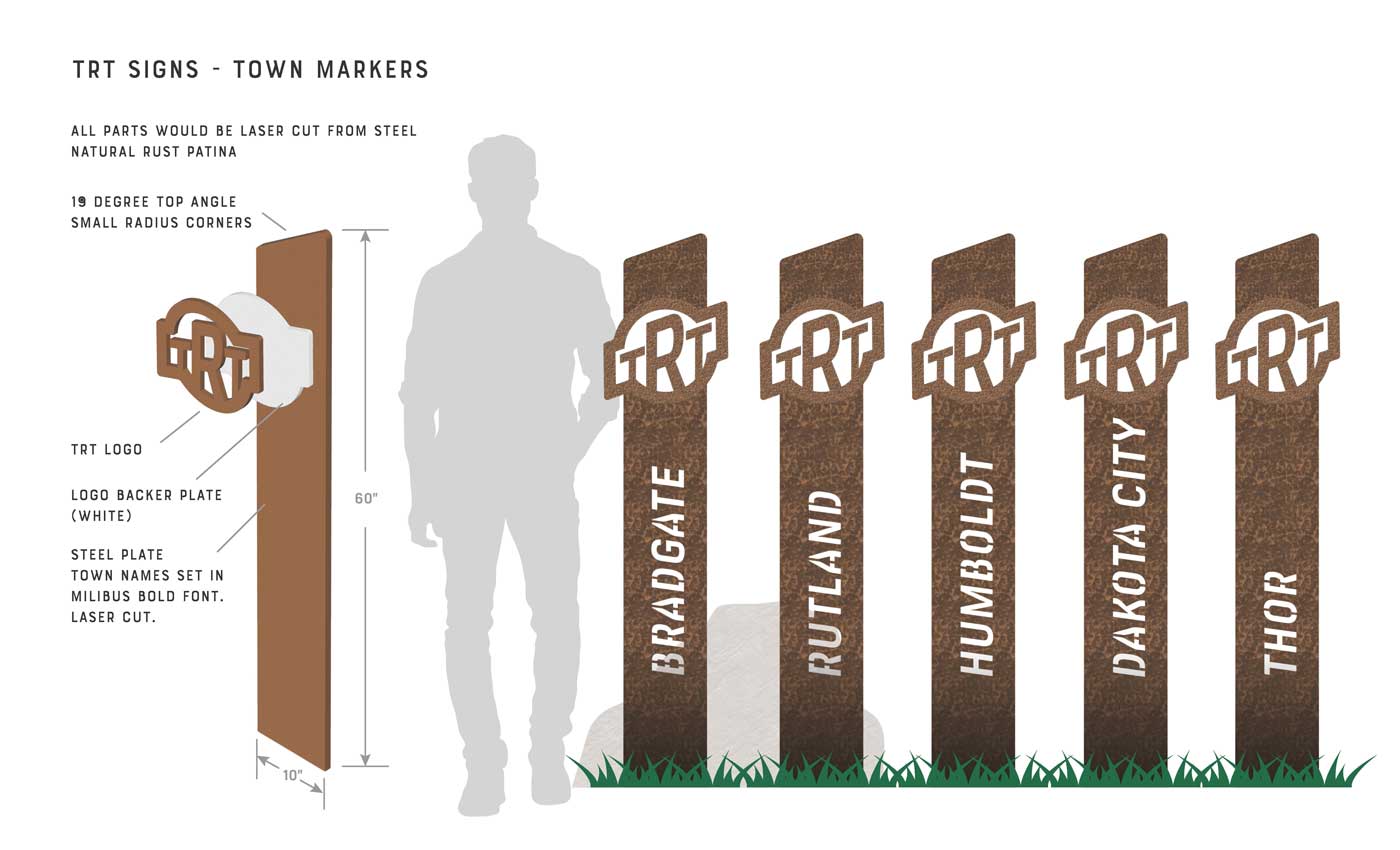

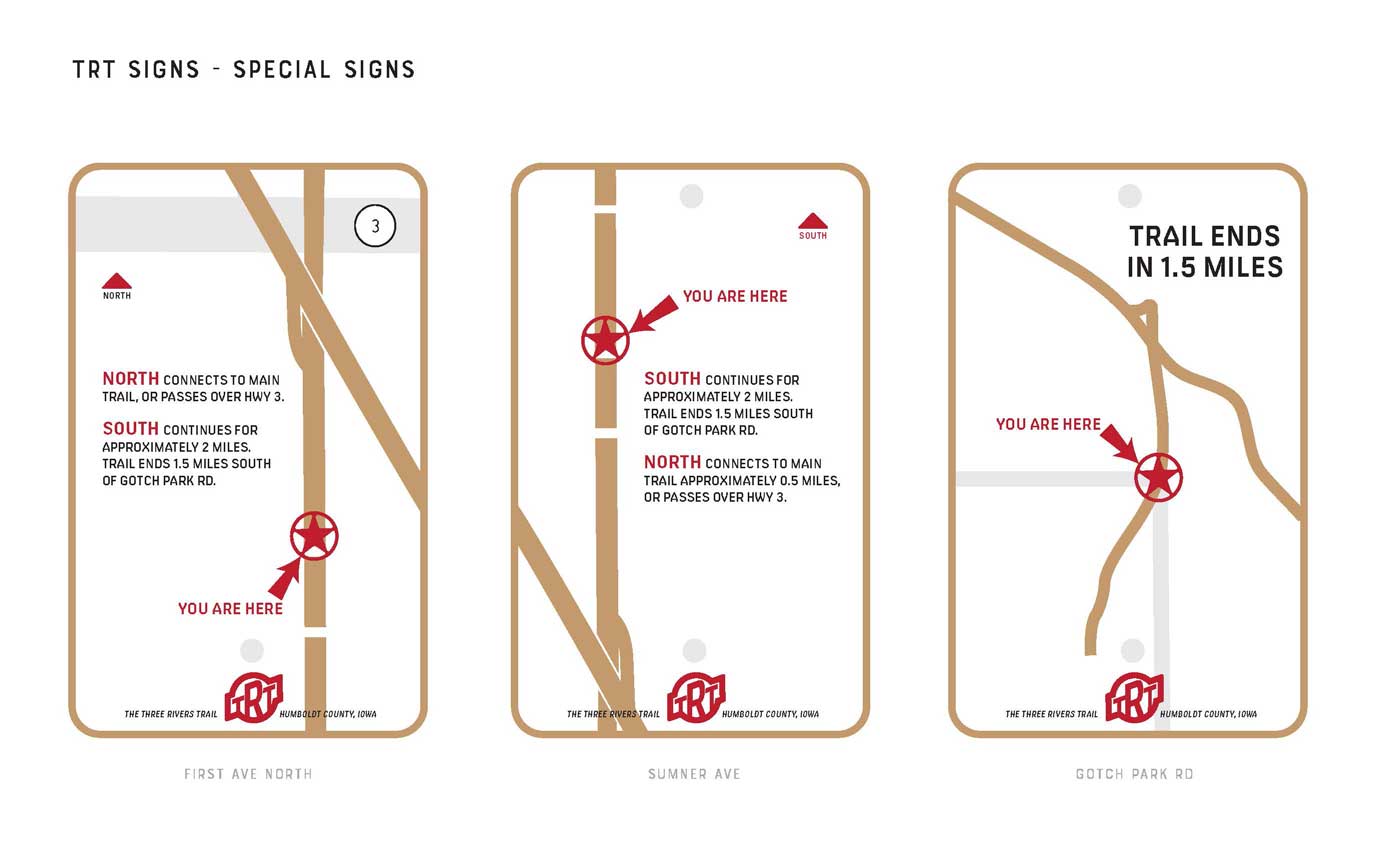

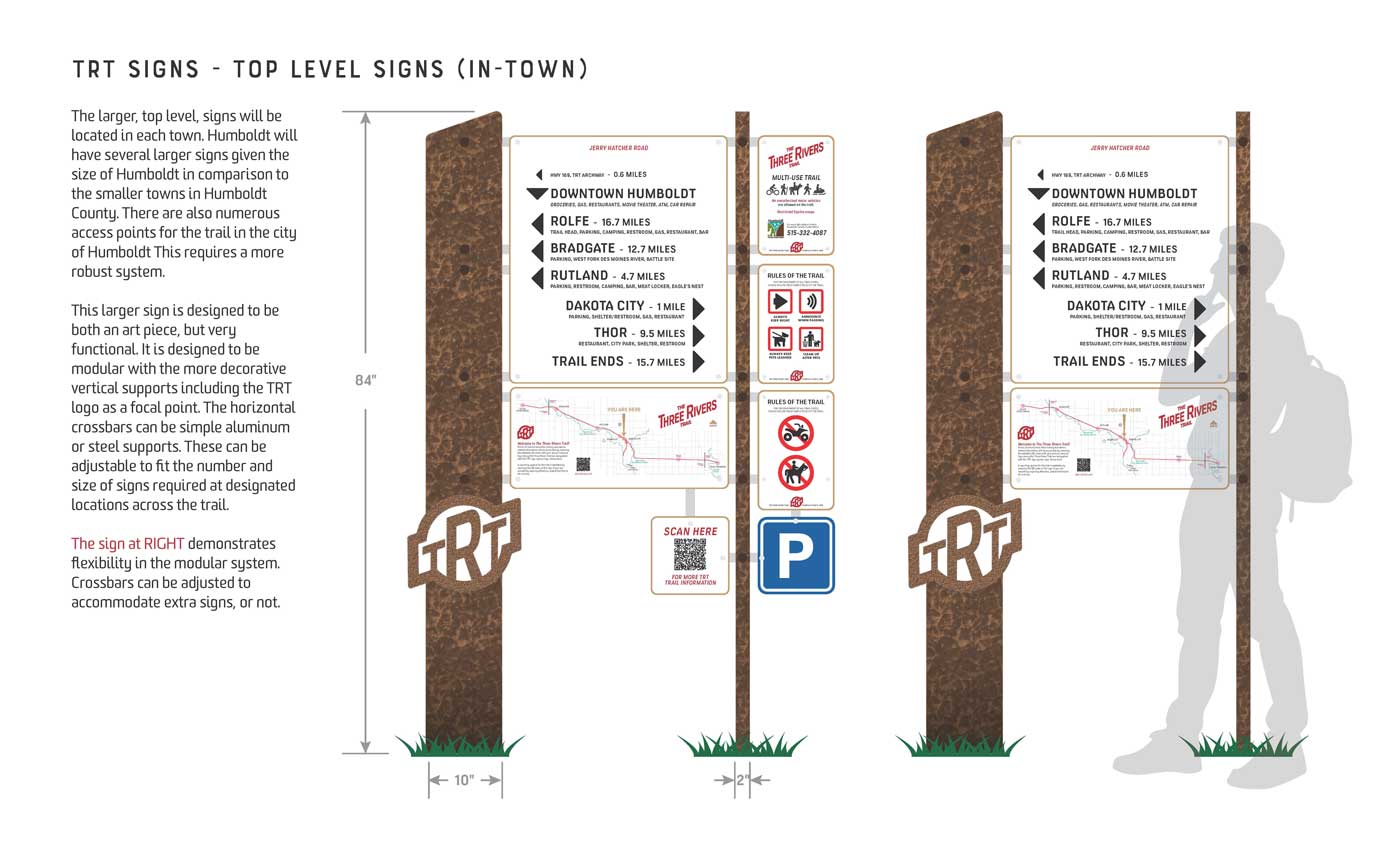

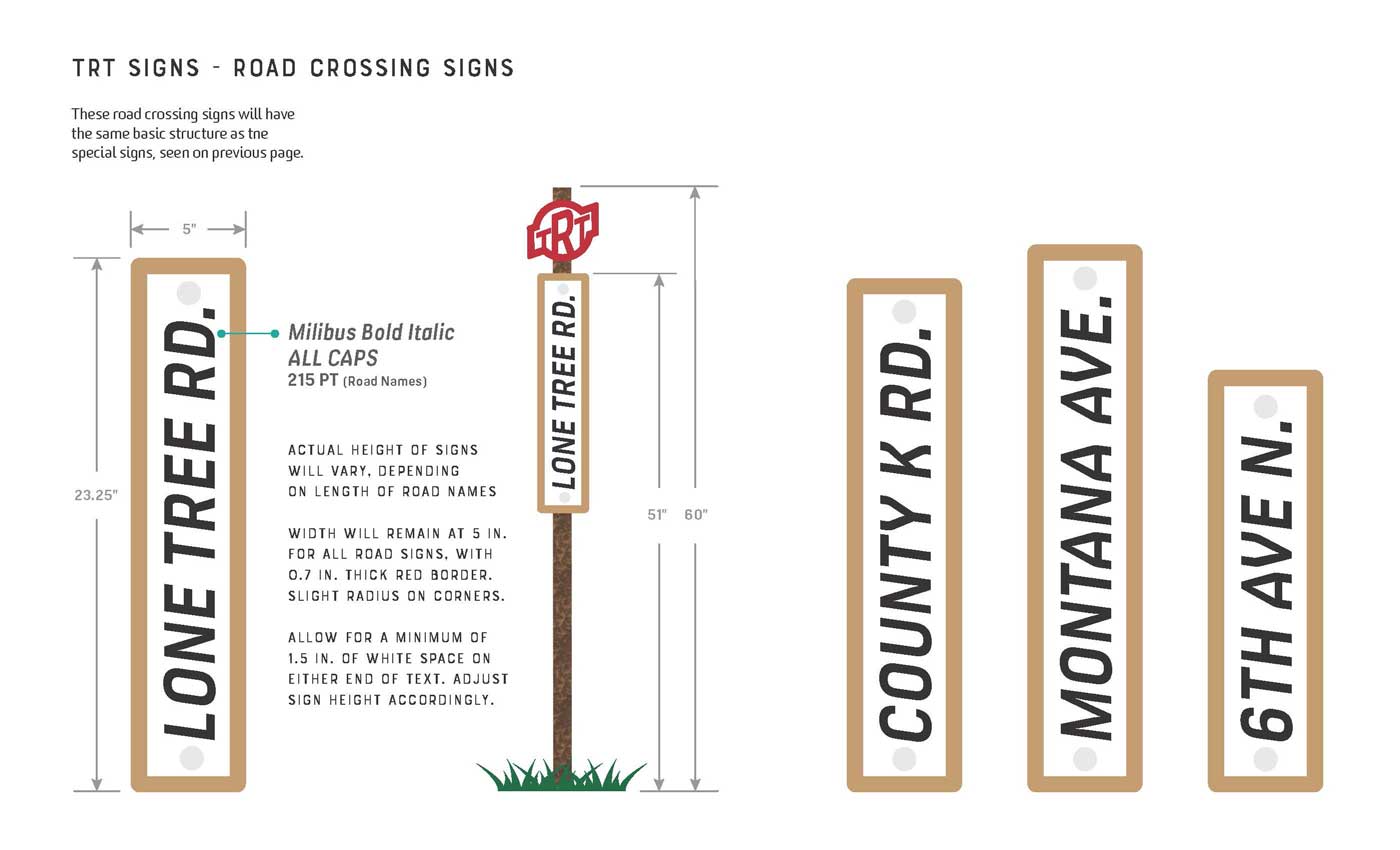

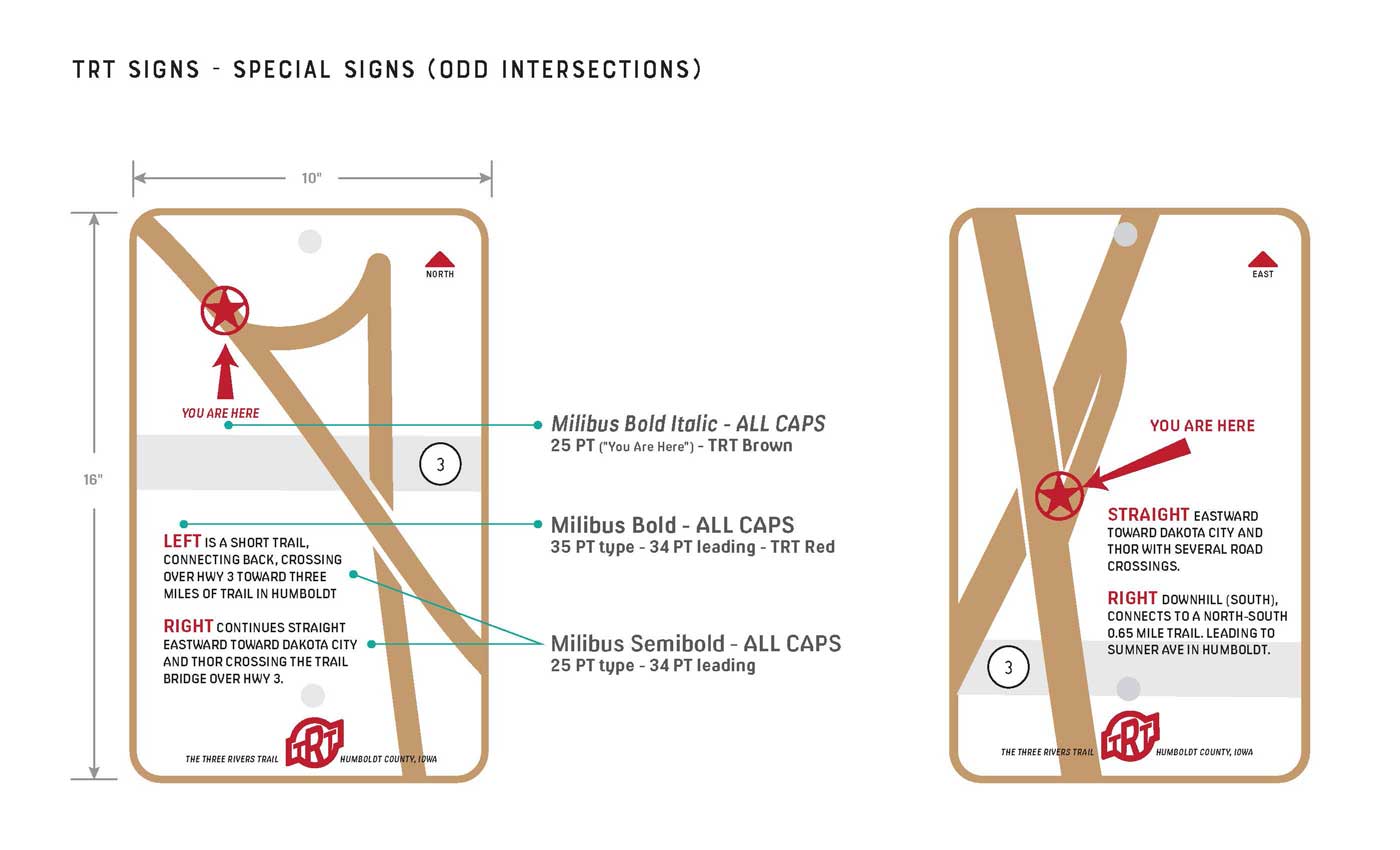

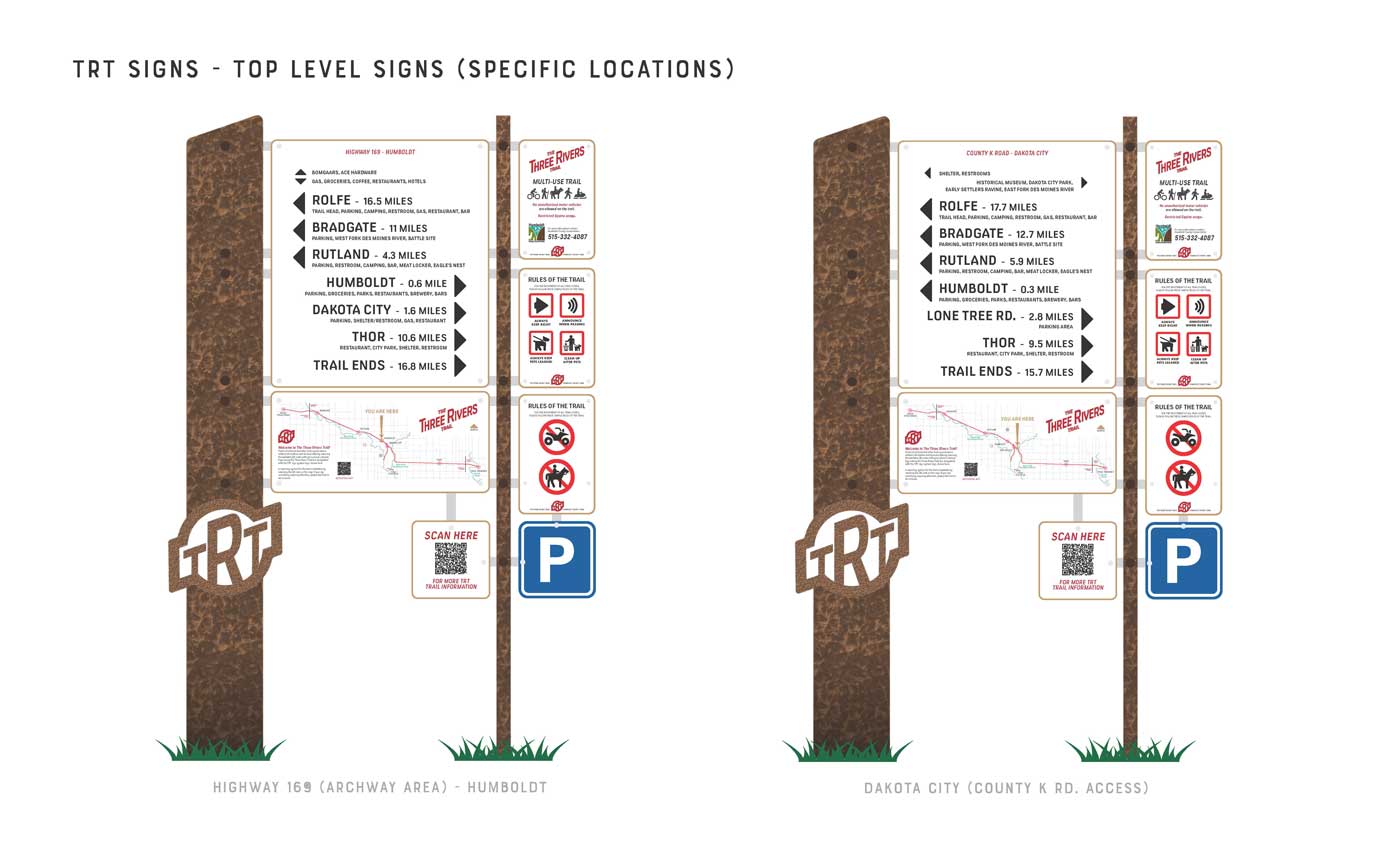

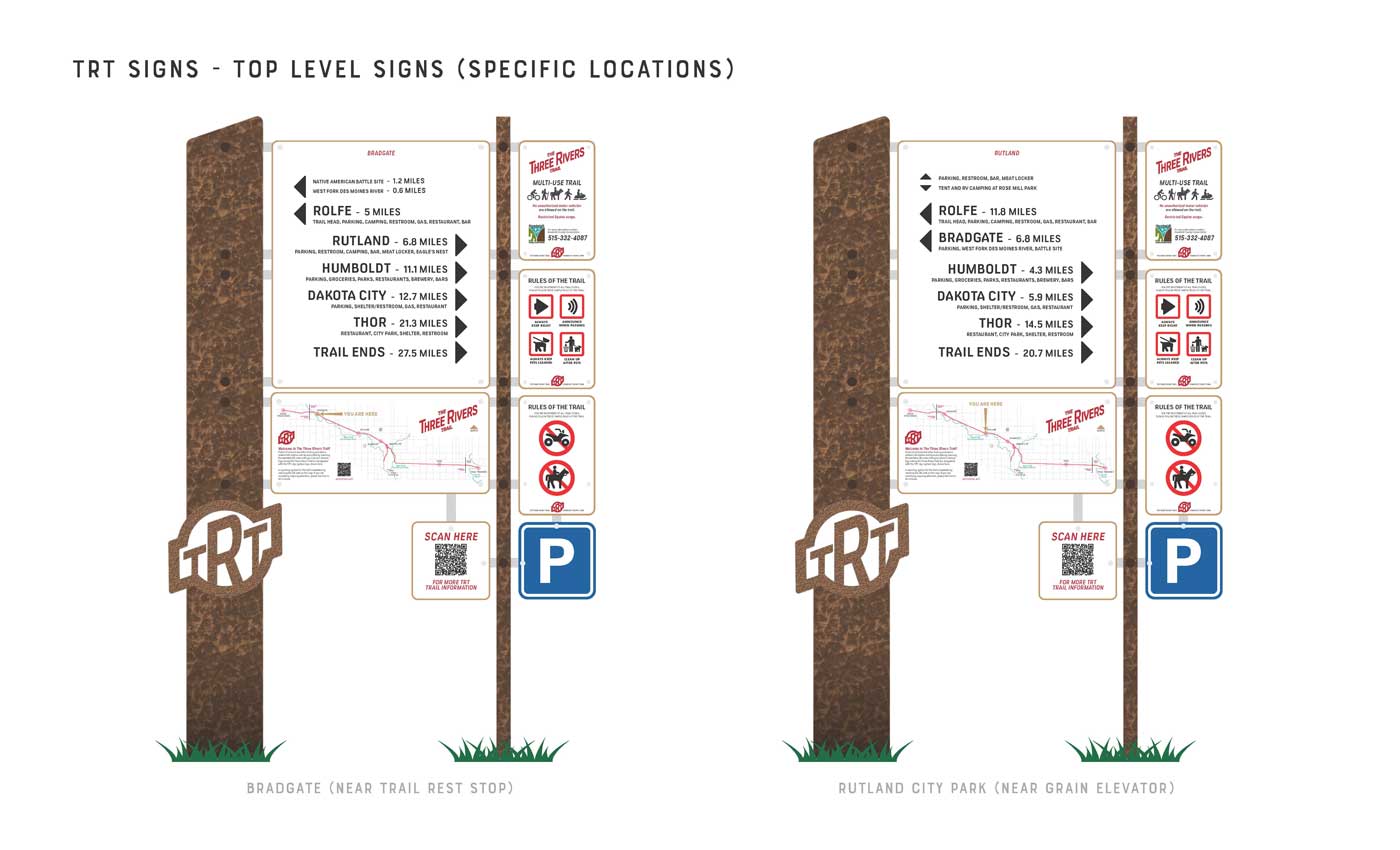

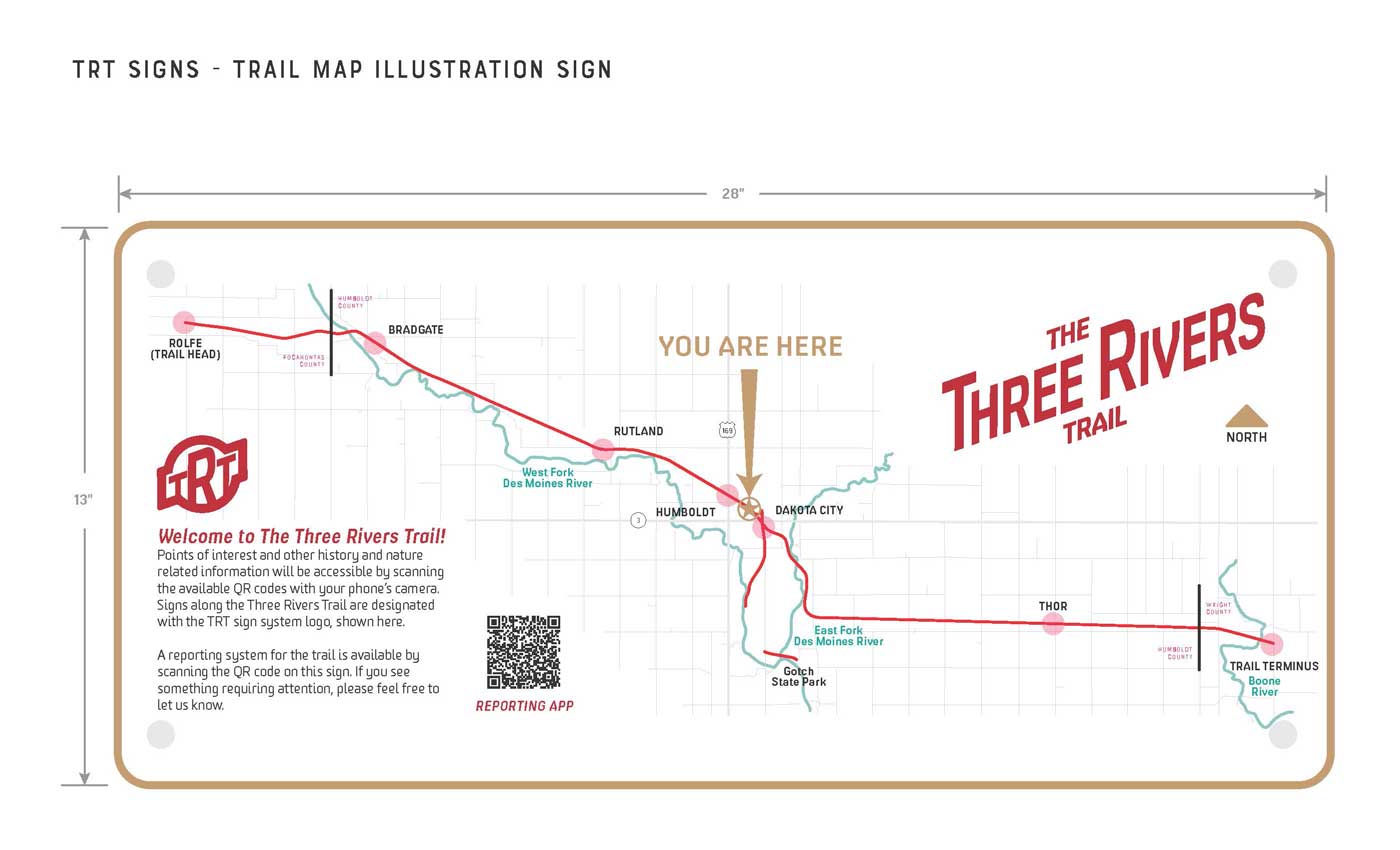

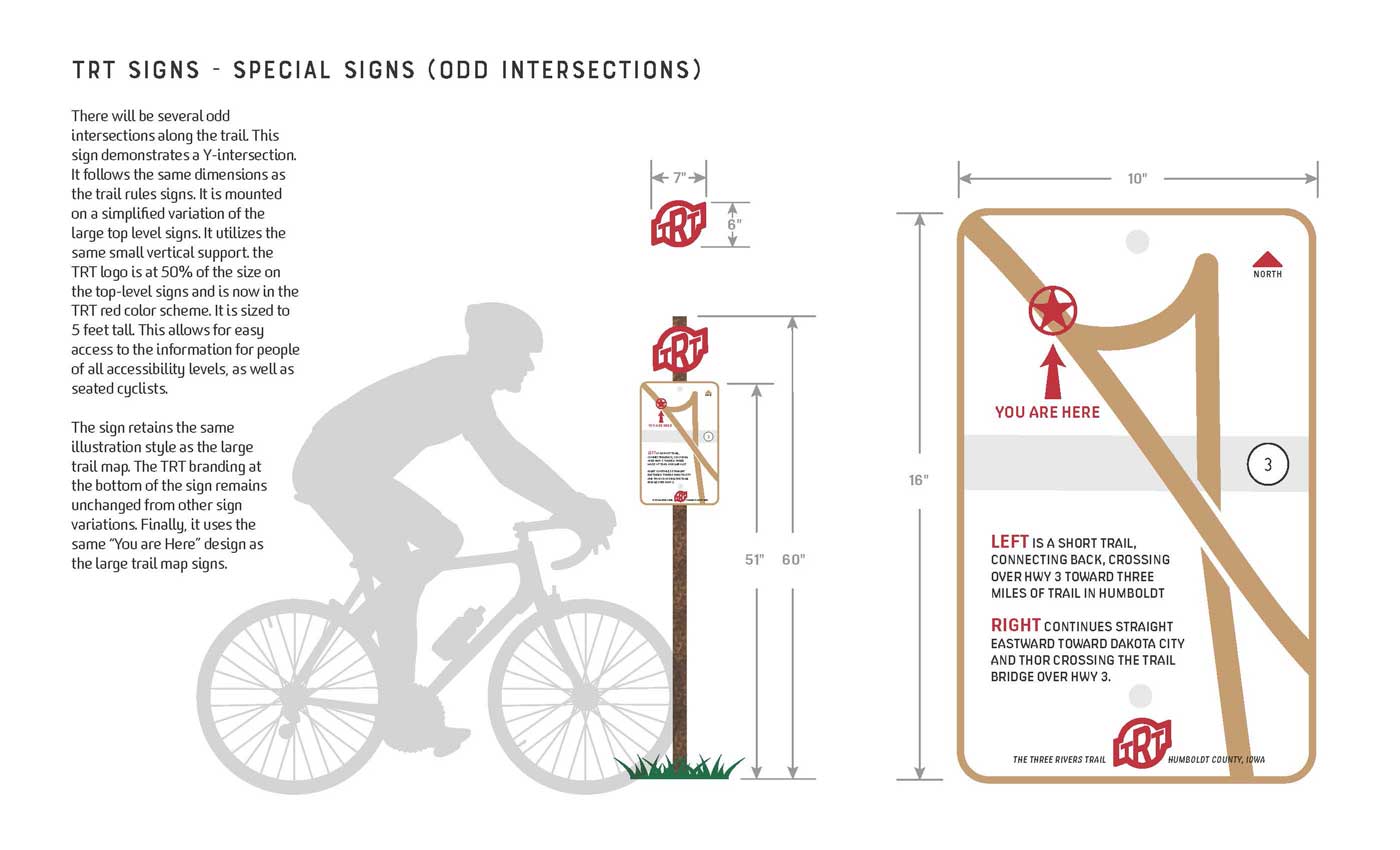

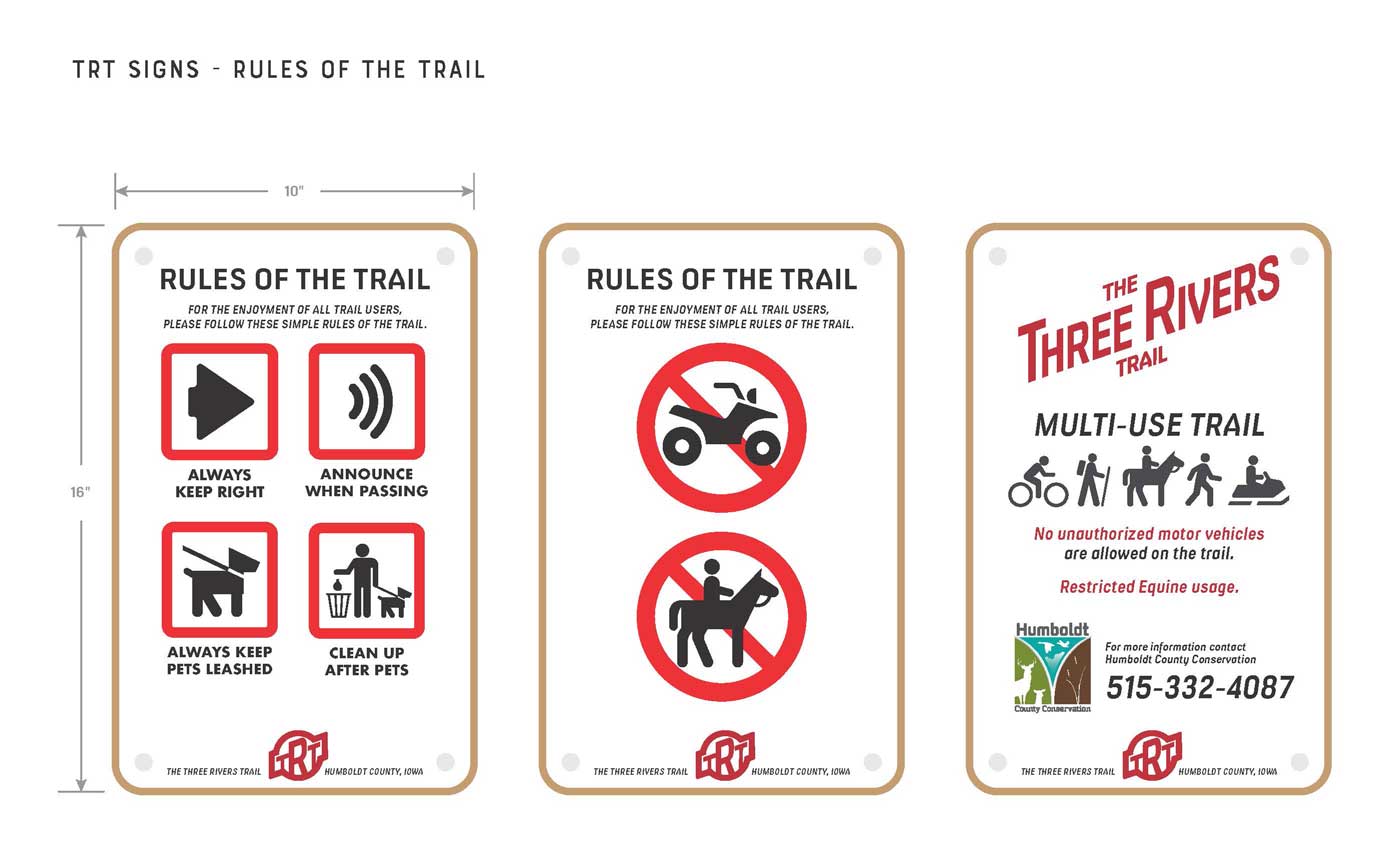

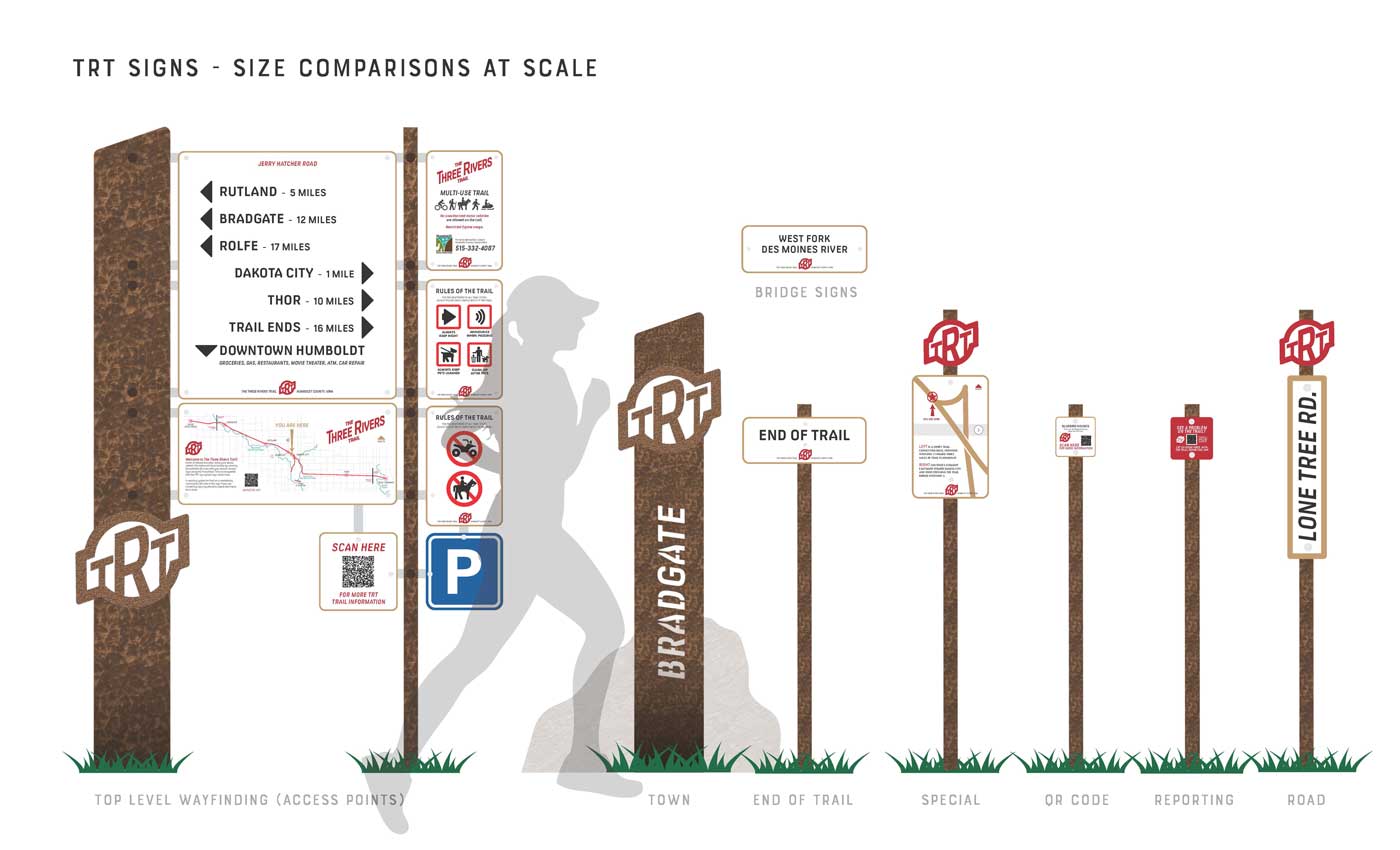

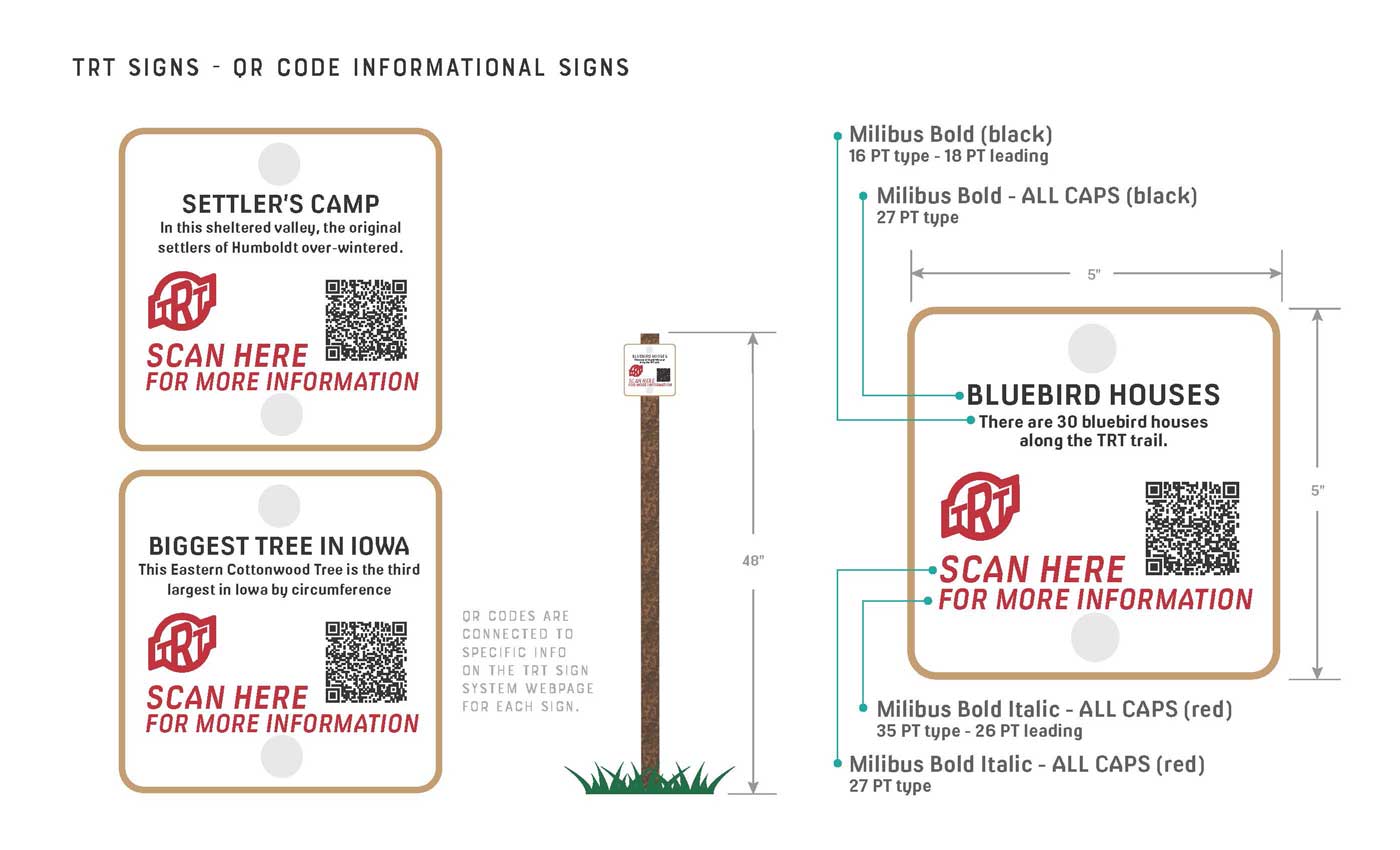

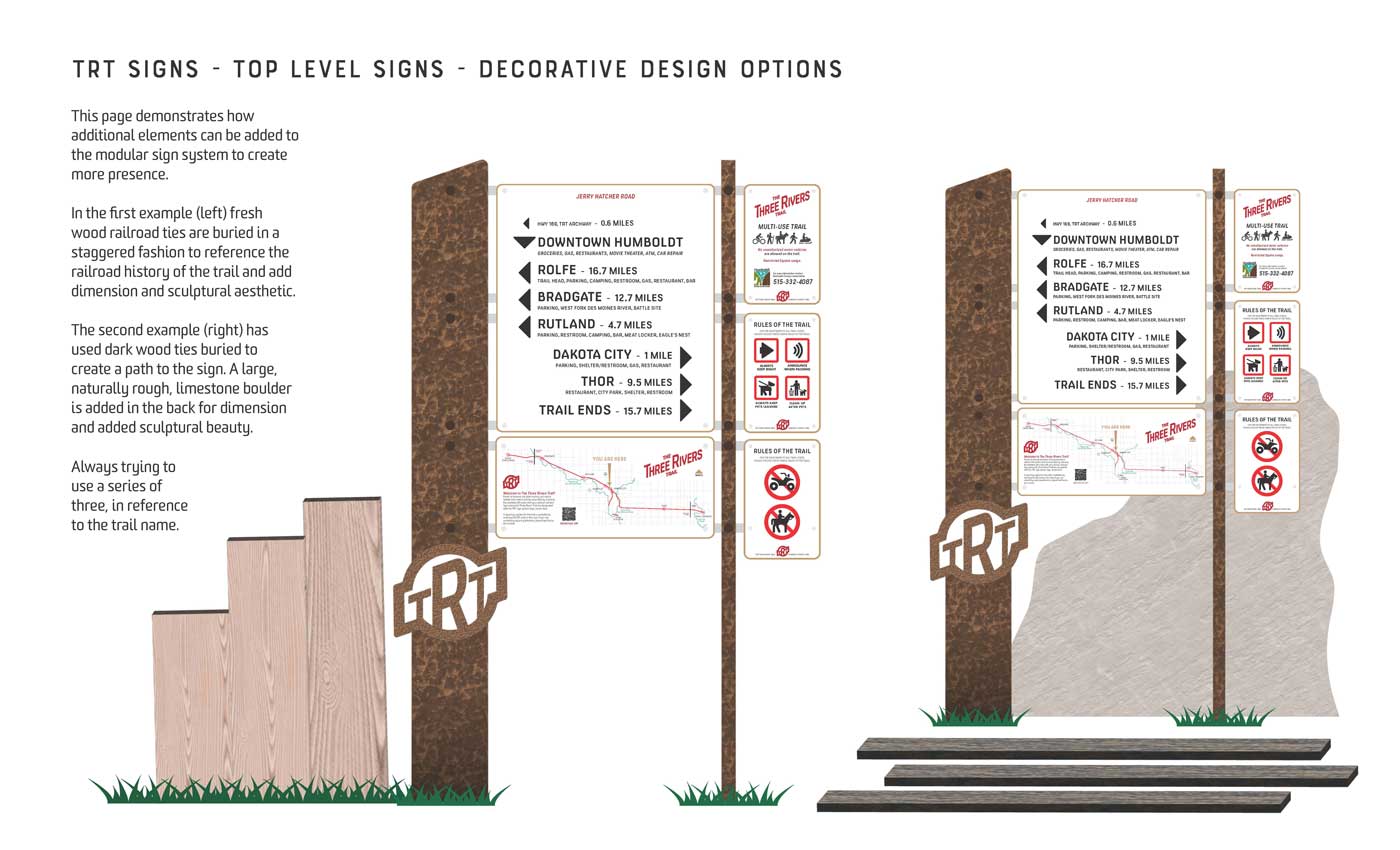

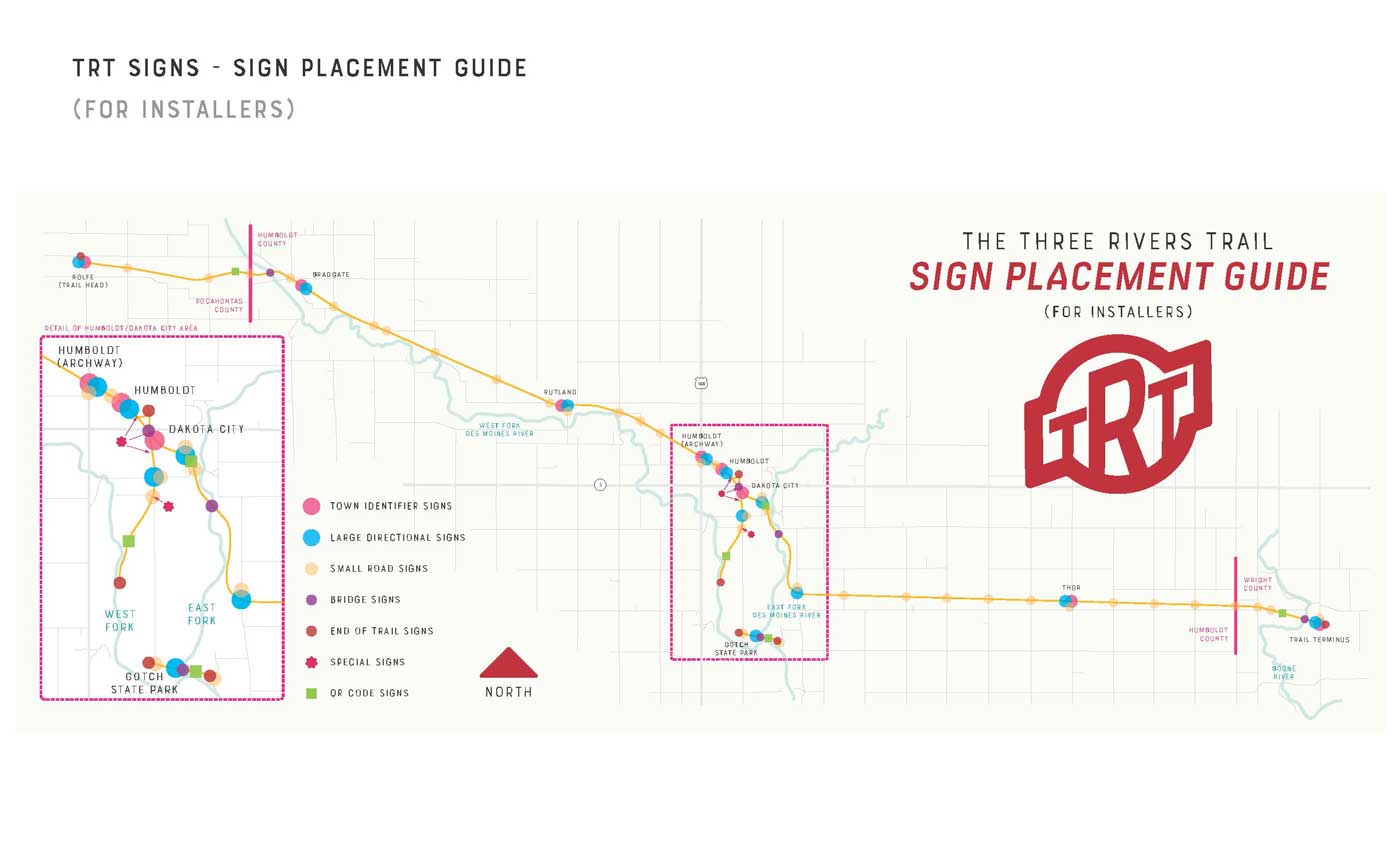

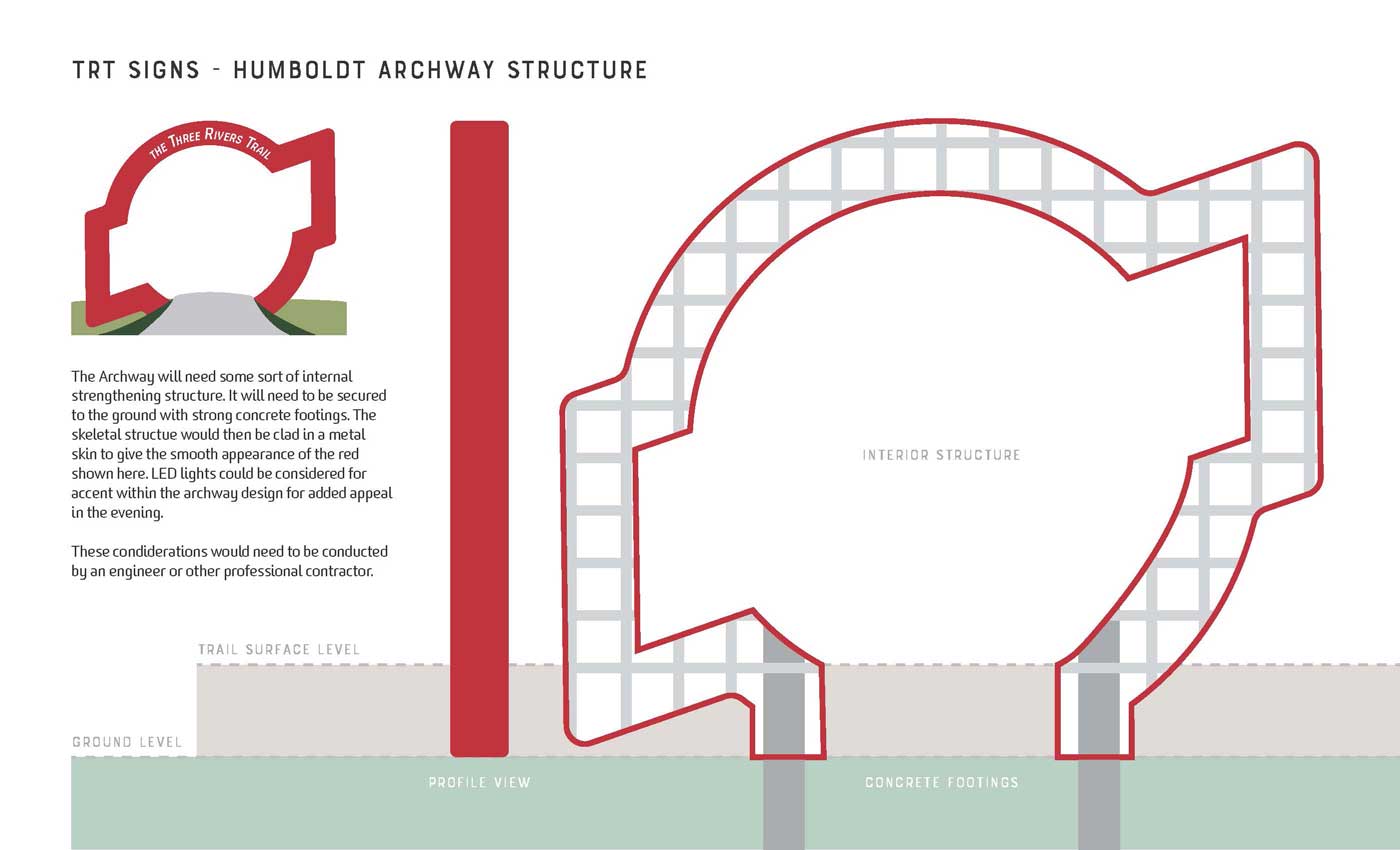

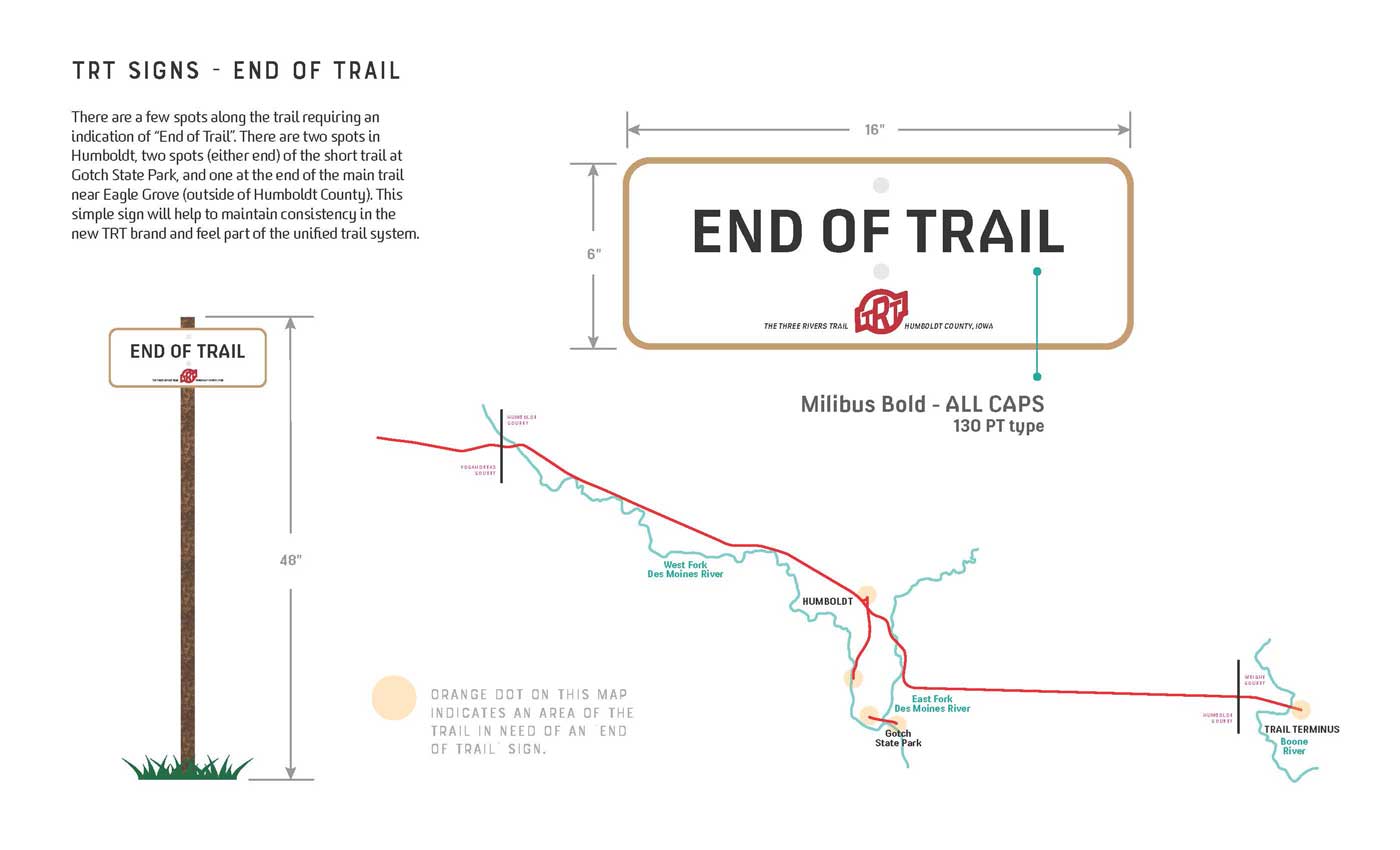

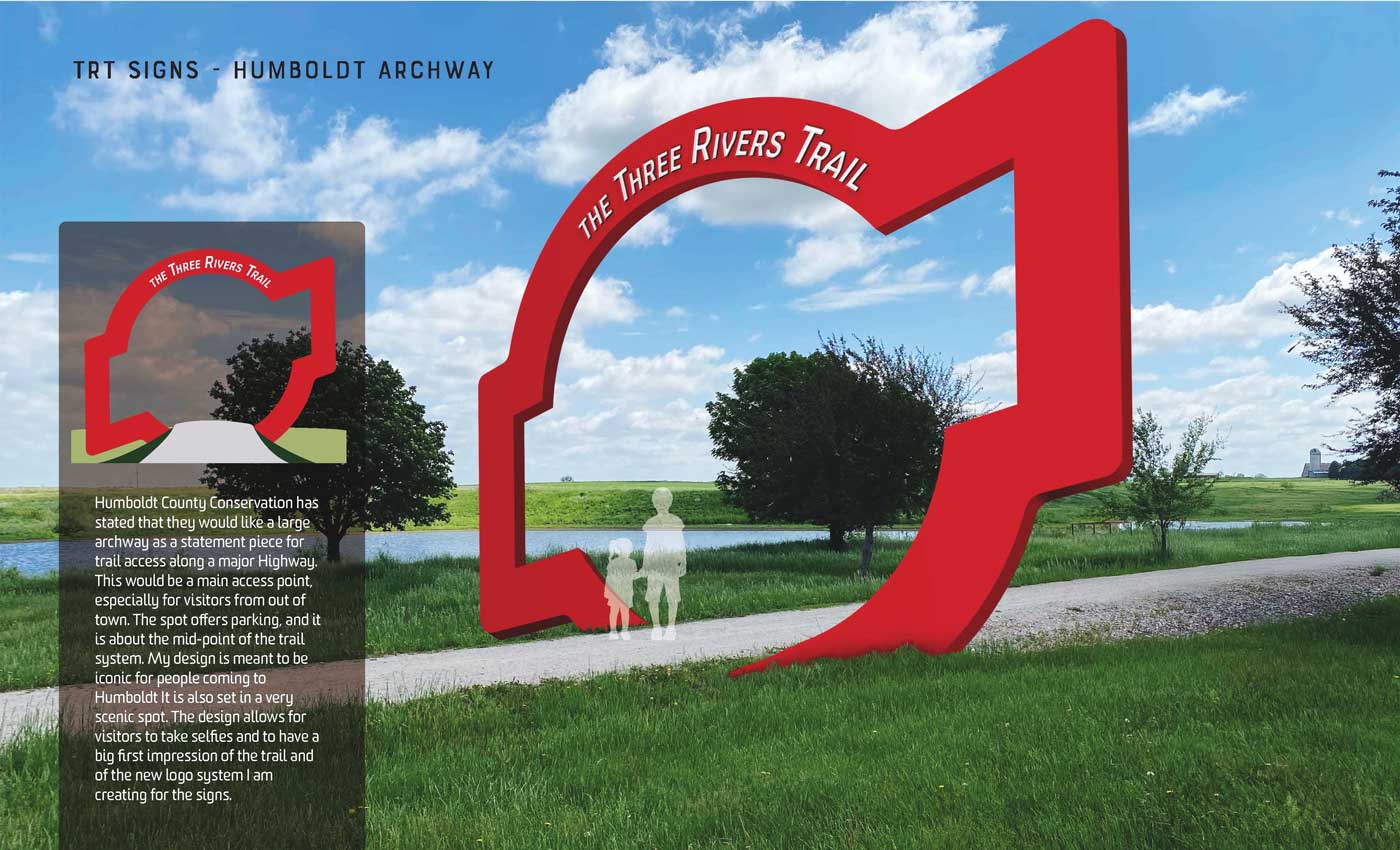

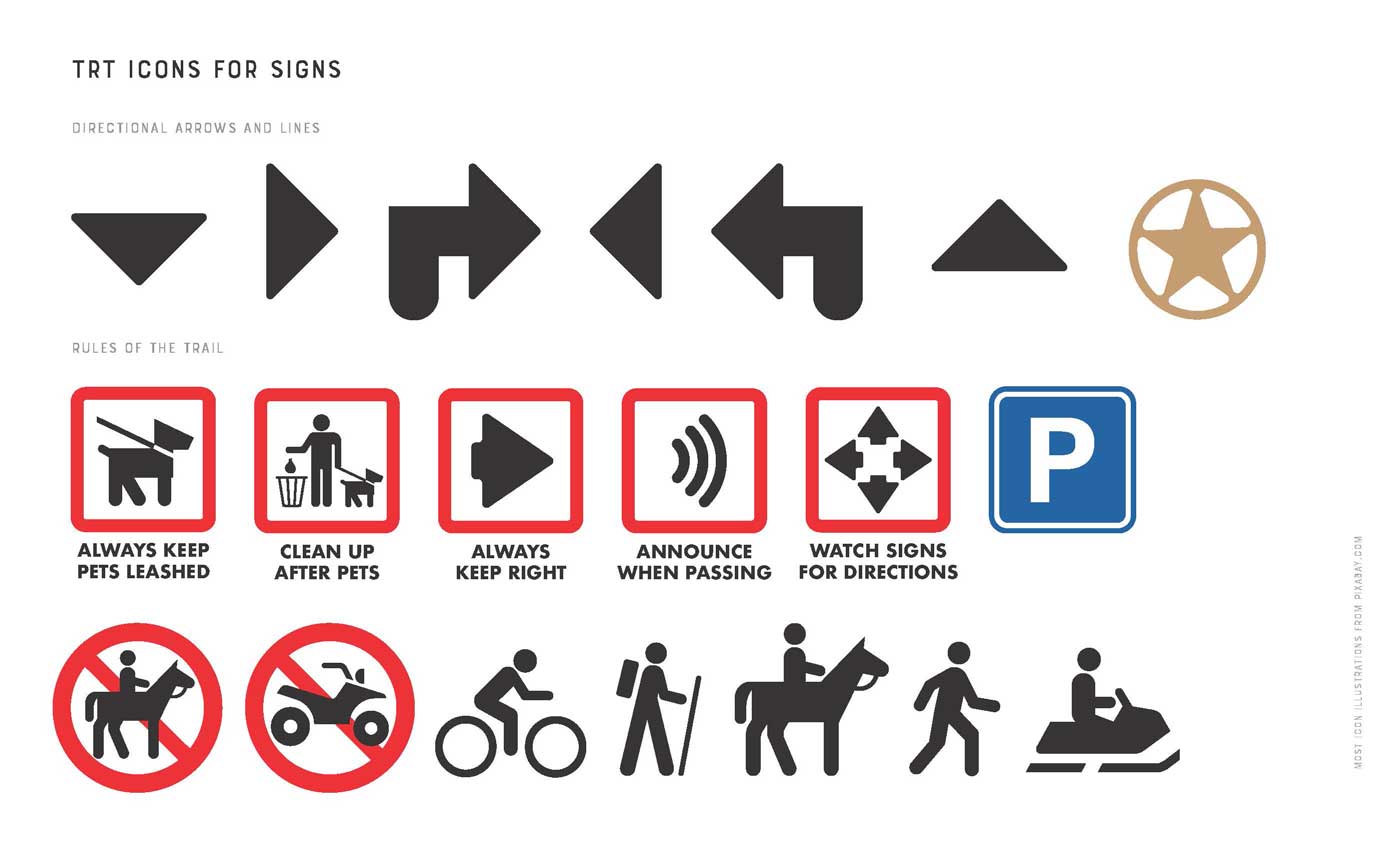

Size comparison of entire new TRT sign system at scale to eachother with silhouette of running adult woman for additional scale reference Icon set for new TRT sign system New TRT 'Rules of the Trail' signs Dimensions and typographic standards for new large wayfinding signs New TRT trail map illustration sign with 'You are Here' arrow New top level TRT wayfinding signs for trail access points showing silhouette of a man for scale Decorative railroad tie options for added sculptural elements at trail access points Top level wayfinding signs with specific information for locations at Bradgate and Rutland Top level wayfinding signs with specific information for locations at the Highway 169 Archway and County K in Dakota City Top level wayfinding signs with specific information for locations at Lone Tree Road and Thor Top level wayfinding signs with specific information for locations at Gotch State Park and Jerry Hatcher Road Town Marker signs created from laser cut steel with TRT logo and natural rust patina. Shown at scale with grown male silhouette Design for 'Special Signs'. Shown at scale with cyclist silhouette. Special intersection signs shown with color, dimension, and typographic standards Three examples of special intersection signs Design, dimensions, and typographic standards for Road Crossing name signs Design, dimensions, and typographic standards for River and highway bridge crossings Design, dimensions, and typographic standards for End of Trail signs along with map illustration for placement Design, dimensions, and typographic standards for QR code informational signs linking to TRT website Mockup of TRT logo outer border design as an archway across the trail at the Highway 169 trail access Schematic render of what the internal structure and elevation showing concrete footings for possible engineering consideration of proposed archway Map illustration for use in placement of new signs along the entire trail system

Full pdf download available below. TRT QR Code Signs website link also available.

Download Sign System PDF TRT Website - for QR Code Signs
